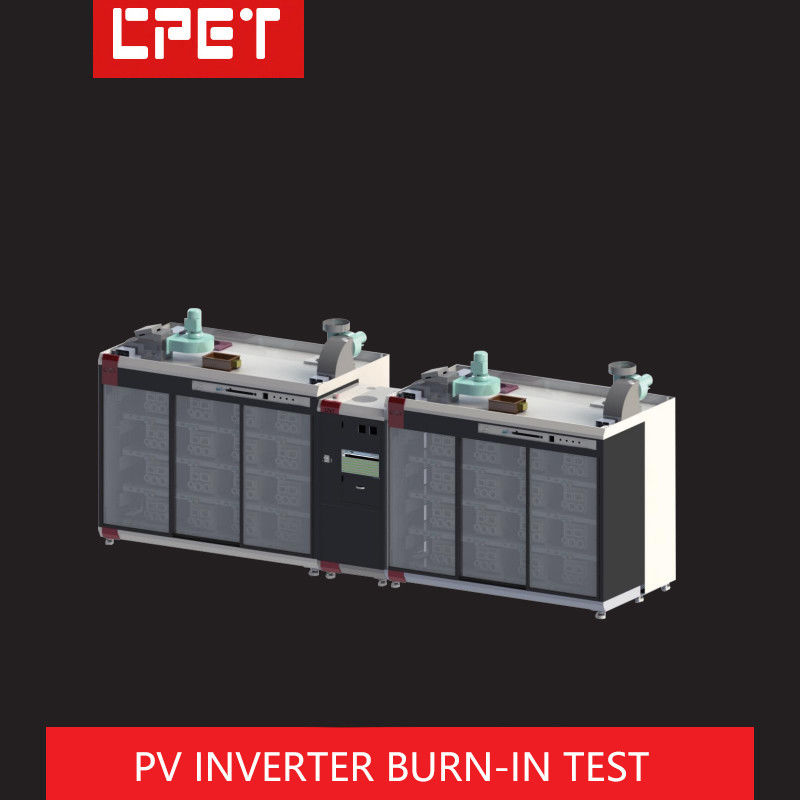

PV Inverter Burn In Test For Stand Alone Inverters Manufacturer Customized

Name: PV Inverter Burn In Test For Stand Alone Inverters Manufacturer Customized
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-NBQ840
Price: 9200 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-NBQ840

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 9200dollars/set

Packaging Details: Wooden case packing

Delivery Time: 40 work days

Payment Terms: L/C

Supply Ability: 25sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                pv inverter burn in test, customized burn in test, customized burn in equipment


Product Area Layers:	4	Feedback Power:	105.6kW
Warranty Period:	1 Year

Product Area Layers:	4
Feedback Power:	105.6kW
Warranty Period:	1 Year

Product Description

PV Inverter Burn-In Test For Stand-Alone Inverters Manufacturer Customized

Architecture diagram

Performance parameters

System	System structure	1 control cabinet + 2 burn-in cabinets
	Overall size	510012002050mm
	Total floor area	5100*2200mm(Including operation area)
	Total input voltage	Three-phase five-wire system 220Vac (rated)
	Total input current	100A
	Total input power	50kW
	Application ambient temperature	0-40℃
	Application environment humidity	0-95%
	Fire protection requirements	Materials meet UL 94V0 rating
	Environmental requirements	Materials comply with Rohs, WEEE requirements
	Safety requirements	Comply with IEC62368 international standard design requirements
Burn-in cabinet	Burn-in bits/cabinet	16 bits/cabinet
	Burn-in bits/layer	4 bits/layer
	Burn-in product power	7kW/bit
	Burn-in product input voltage	50-750Vdc/bit
	Burn-in product input current	25A/bit
	Burn-in Product Load Category	6.6kW/bit
	Burn-in product load current	220Vac/50Hz
	Burn-in product output current	32A/bit
	AC Connector Type	PA45 (L/N/PE)
	DC Connector Type	MC4 photovoltaic connector (PV+/PV-/4 groups)
	Signal Connector Type	RJ45 (network port)
	Bit Status Indicator	No
	Input power	130kW
	Feedback power	105.6kW
	Constant temperature range	Room temperature+5°C-60°C
	Constant temperature accuracy	±5°C
	Number of temperature control points	5
	Open type	Sliding door/folding door/side door
	Volume size	210012002050mm
	Dimensions in the product area	17005501500mm
	Product area layers	4
	Bit space size	425550350mm
	Minimum floor height	300mm
	Top floor height	1450mm
	Product area air duct direction	Left and right ventilation
	Cooling method	Air cooling
	Material	1.5mm cold rolled sheet, epoxy sheet (laminate)
Monitoring software	Display running information	Input voltage, current, power, output voltage (DC source module communication or product communication)
	Show status information	Not Connected / Vacant / Passed / Under Voltage / Under Current / Over Voltage / Over Current / No Output / Protection
	Display accuracy	±(1%+0.2%FS)
	Control precision	±(1%+0.2%FS)
	Bad way of reporting	Audible alarm
	Report format	CSV format
	Statistics	Yield/CPK/Time Distribution
	MES docking	Support
	Scan speed	5S
Control cabinet	Control system	Window 10
	Display medium	Computers and Monitors
	Manipulating medium	Mouse and keyboard
	Communication method	Cable
	Type of protection	Over current, leakage, over temperature, smoke, emergency stop
	Alarm method	Sound and light alarm, remote network
	Heat dissipation type	Air cooling
	Maintenance mode	Post maintenance
	Material	1.5mm cold rolled sheet
	Volume size	8808601900mm
