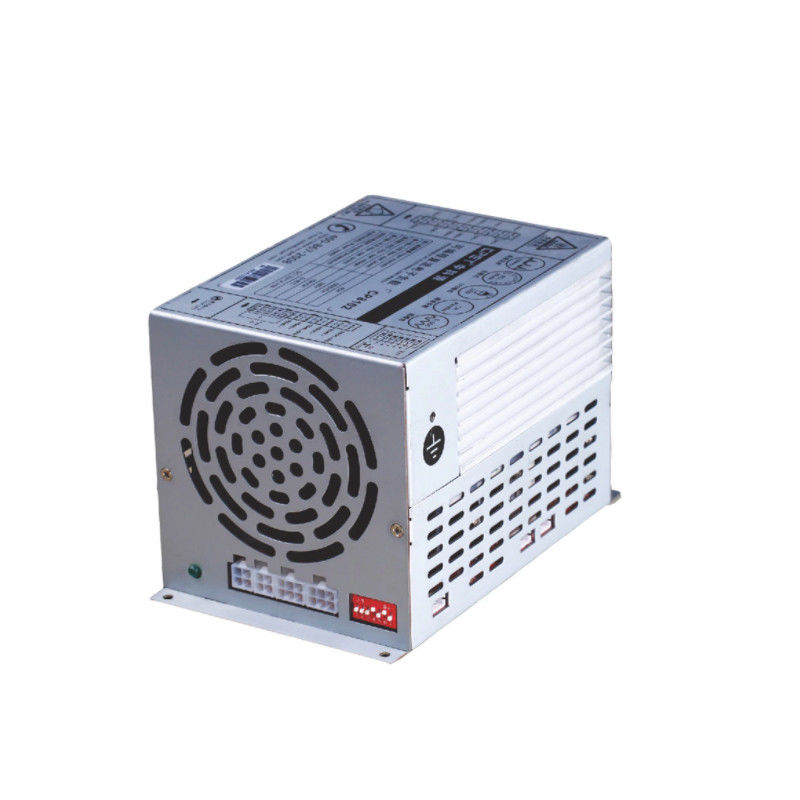

Aging Cabinet Electronic Load Module DC Charger Power Programmable LED Tester

Name: Aging Cabinet Electronic Load Module DC Charger Power Programmable LED Tester
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: 8102
Price: 150 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: 8102

Payment & Shipping Terms

Minimum Order Quantity: 10sets

Price: 150dollars/set

Packaging Details: Wooden case packing

Delivery Time: 5-8 work days

Payment Terms: D/A, T/T

Supply Ability: 1000sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                500V Electronic Load Module, DC Charger Power Electronic Load Module, 100W electronic load


Input Voltage Range:	0~500V	Input Current Range:	0.1~10A
Channel Number:	4CH	Single Channel Power:	100W
Pull Mode:	CC/CV/LED/CR/CP	Votage Comtrol Precision:	±1%+0.5%FS

Input Voltage Range:	0~500V
Input Current Range:	0.1~10A
Channel Number:	4CH
Single Channel Power:	100W
Pull Mode:	CC/CV/LED/CR/CP
Votage Comtrol Precision:	±1%+0.5%FS

Product Description

Aging Cabinet Electronic Load Module DC Charger Power Programmable LED Tester 0

Scope of application

Isolated & non-isolated LED driver TV power, LED backlight driver

Power charger, adapter DC-DC converter

Power with multiple voltage output and positive & negative voltage output

Outstanding functions

1. Be of five kinds of load modes, such as CC, CV, CR, CP and LED.

2. Support simulation of LED steady state operating point, with programmable internal resistance coefficient of LED.

3. Support parallel connection of channels under any load modes and meet the requirements for product power extension.

4. Support monitoring of peak value and valley value of voltage and current (ripple frequency below 10 KHz).

5. Support the maximum dynamic load of 5K and programmable rising and falling slope of current.

6. Programmable current up and down the slope.

7. Support settings of Von/Von latch.

8. Support output of PWM dimming signals.

9. 2 Road extension logic signal output.

10. Support anomaly detection of voltage and current output above 100 us.

11. Apply 6½ regulator to calibrate automatically.

12. Meet the requirements for burn-in test of power from low voltage to high voltage and from low current to large current.

13. Isolate through multi-channels, and support burn-in test for isolated & non-isolated power and multi-channel output power.

14. Support output for PASS/FAIL detecting signals of tested module 15. Be of protection functions for over-temperature, over-current and over-power.

Performance parameters

Model	CP-8102	CP-8103	CP-8104	CP-8108
Input voltage range	1-500V	1-500V	1-500V	1-500V
Input current range	0.05-10A	0.05-10A	0.05-10A	0.05-5A
Single channel power	100W	125W	150W	40W
Pull mode	CC/CV/LED/CR/CP
Votage comtrol precision	±1%+0.5%FS
Voltage accuoacy	±1%+0.5%FS
Current readback accuracy	±1%+0.5%FS
Communication mode	RS-485
Channel isolation	Y			N

Model	CP-8118	CP-8119	CP-8130
Input voltage range	2-100V	2-100V	1-200V
Input current range	0.2-5A	0.2-6A	0.5-1A
Single channel power	50W	65W	100W
Pull mode	CC/CV	CC/CV	LED
Votage comtrol precision	±1%+0.5%FS
Voltage accuoacy	±1%+0.5%FS
Current readback accuracy	±1%+0.5%FS
Communication mode	RS-485
Channel isolation	N	N	Y
