products

Home > products > New Energy Solutions > Vehicle Bms High Temperature Automotive Motor Controller Aging Test Cabinet

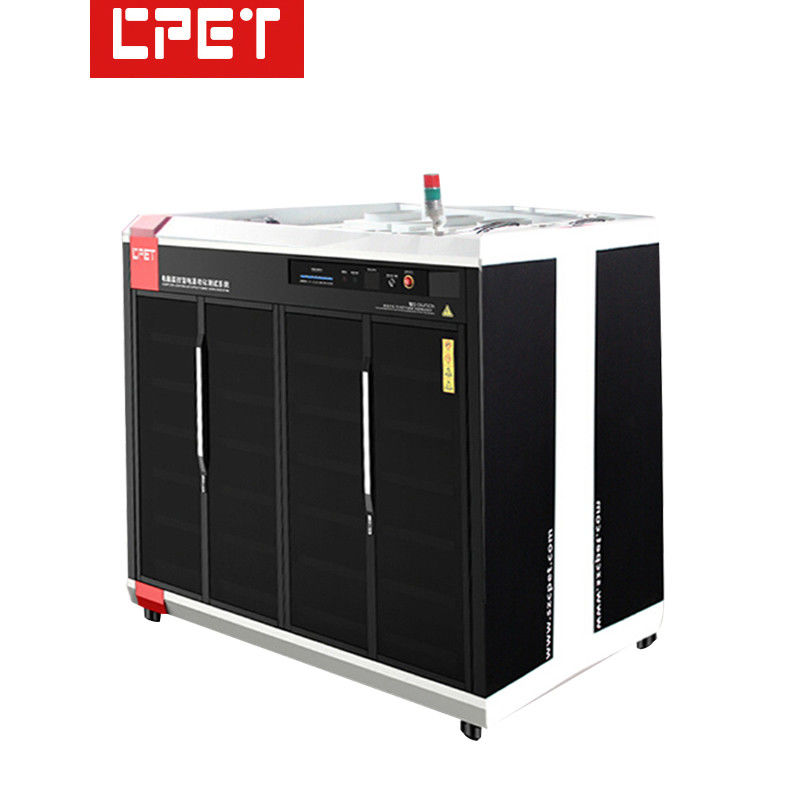

Vehicle Bms High Temperature Automotive Motor Controller Aging Test Cabinet

Name: Vehicle Bms High Temperature Automotive Motor Controller Aging Test Cabinet
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-BMS01
Price: 8600 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-BMS01

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8600dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                bms aging test chamber, bms new energy solutions, high temperature aging test chamber


Burn-in Cabinet Size(mm):	L1600W1100H1600	Rated Working Voltage:	380Vac
Rated Insulation Voltage:	690Vac

Burn-in Cabinet Size(mm):	L1600W1100H1600
Rated Working Voltage:	380Vac
Rated Insulation Voltage:	690Vac

Product Description

Vehicle Bms High Temperature Automotive Motor Controller Aging Test Cabinet

Scope of application

This equipment is mainly used for high temperature burn-in test of BMS board of vehicle motor controller

Performance parameters

Skills requirement	Burn-in cabinet size(mm)	L1600W1100H1600
	Rated working voltage	380Vac
	Rated insulation voltage	690Vac
	Rated frequency	50Hz
	Rated working current	32A
	Power frequency withstand voltage for 1 minute	2500Vac
	UUT input specifications	12VDC/5Amax*36passageway
	UUT output specifications	Static burn-in without load
	Number of burn-in stations	36 (6 layers * 6, hierarchical control)
	Burn-in temperature requirements	Product area(50 ℃-85 ℃)can be set,±3℃ precise control
	Temperature rise	Requires a temperature rise from room temperature to 85 ° C within 15 minutes. When the internal temperature is high,the surface temperature of the burn-in cabinet is below 35 °
	Master switch	Route 132A
	Branch switch	6 way 10A/30mA/3Por1P
	Noise	<70dB (measured at a distance of 1m from the device)
