Home > products > New Energy Solutions > Burn-In Test System For Household Photovoltaic Half-bridge full-bridge inverter

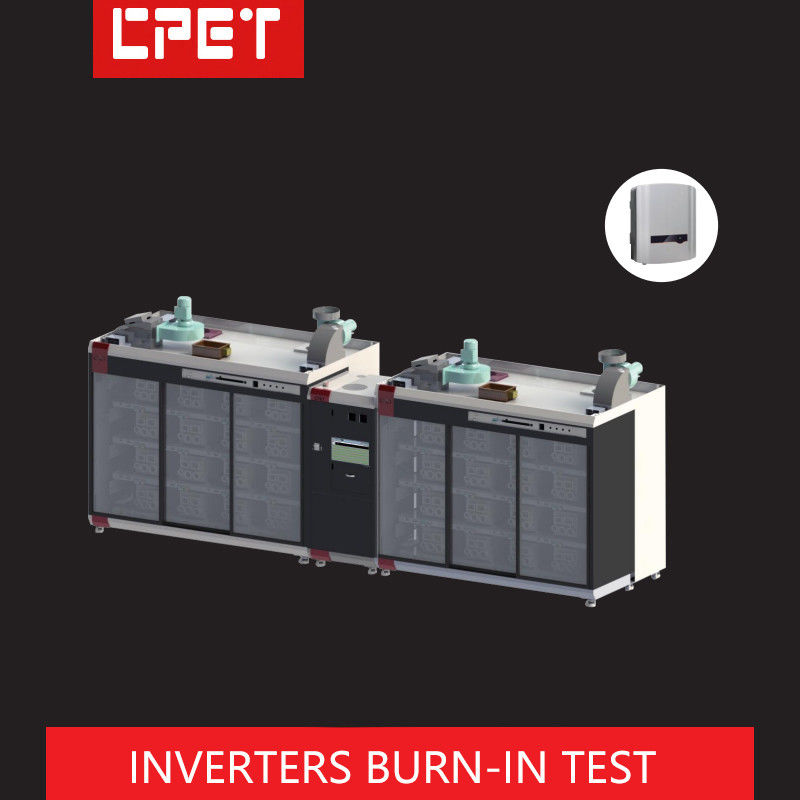

Burn-In Test System For Household Photovoltaic Half-bridge full-bridge inverter

Name: Burn-In Test System For Household Photovoltaic Half-bridge full-bridge inverter
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-NBQ829
Price: 9000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-NBQ829

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 9000dollars/set

Packaging Details: Wooden case packing

Delivery Time: 40 work days

Payment Terms: L/C

Supply Ability: 25sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                100a aging test chamber, 100a new energy solutions


Total Input Current:	100A	Total Input Power:	50kW
Warranty Period:	12 Months

Total Input Current:	100A
Total Input Power:	50kW
Warranty Period:	12 Months

Product Description

Burn-In Test System For Household Photovoltaic Half-Bridge Full-Bridge Inverter

Architecture diagram

Performance parameters

System	System structure	1 control cabinet + 2 burn-in cabinets
	Overall size	510012002050mm
	Total floor area	5100*2200mm(Including operation area)
	Total input voltage	Three-phase five-wire system 220Vac (rated)
	Total input current	100A
	Total input power	50kW
	Application ambient temperature	0-40℃
	Application environment humidity	0-95%
	Fire protection requirements	Materials meet UL 94V0 rating
	Environmental requirements	Materials comply with Rohs, WEEE requirements
	Safety requirements	Comply with IEC62368 international standard design requirements
Burn-in cabinet	Burn-in bits/cabinet	16 bits/cabinet
	Burn-in bits/layer	4 bits/layer
	Burn-in product power	7kW/bit
	Burn-in product input voltage	50-750Vdc/bit
	Burn-in product input current	25A/bit
	Burn-in Product Load Category	6.6kW/bit
	Burn-in product load current	220Vac/50Hz
	Burn-in product output current	32A/bit
	AC Connector Type	PA45 (L/N/PE)
	DC Connector Type	MC4 photovoltaic connector (PV+/PV-/4 groups)
	Signal Connector Type	RJ45 (network port)
	Bit Status Indicator	No
	Input power	130kW
	Feedback power	105.6kW
	Constant temperature range	Room temperature+5°C-60°C
	Constant temperature accuracy	±5°C
	Number of temperature control points	5
	Open type	Sliding door/folding door/side door
