Burn-In Test facility For Small String Inverters Converter reflux transformer

Name: Burn-In Test facility For Small String Inverters Converter reflux transformer
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-NBQ830
Price: 9100 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-NBQ830

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 9100dollars/set

Packaging Details: Wooden case packing

Delivery Time: 40 work days

Payment Terms: L/C

Supply Ability: 25sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                small string inverters aging test chamber, small string inverters new energy solutions


Total Input Current:	300A	Total Input Power:	160kW
Warranty Period:	12 Months

Total Input Current:	300A
Total Input Power:	160kW
Warranty Period:	12 Months

Product Description

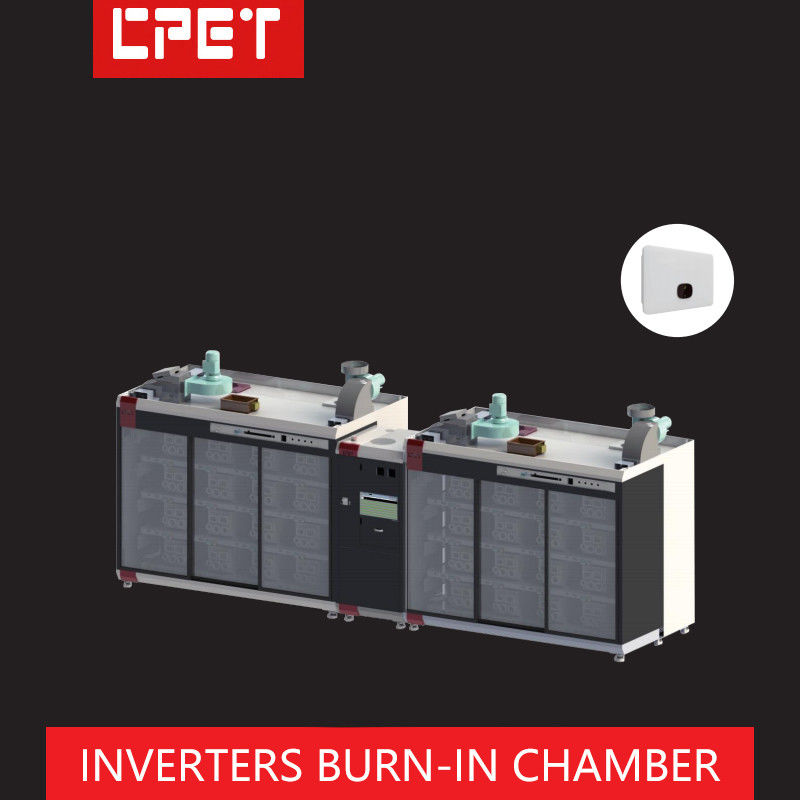

Burn-In Test Facility For Small String Inverters Converter Reflux Transformer

Architecture diagram

Performance parameters

System	System structure	1 control cabinet + 2 burn-in cabinets
	Overall size	510015002050mm
	Total floor area	5100*2500mm(Including operation area)
	Total input voltage	Three-phase five-wire system 220Vac (rated)
	Total input current	300A
	Total input power	160kW
	Application ambient temperature	0-40℃
	Application environment humidity	0-95%
	Fire protection requirements	Materials meet UL 94V0 rating
	Environmental requirements	Materials comply with Rohs, WEEE requirements
	Safety requirements	Comply with IEC62368 international standard design requirements
Burn-in cabinet	Burn-in bits/cabinet	9 bits/cabinet
	Burn-in bits/layer	3 bits/layer
	Burn-in product power	40kW/bit
	Burn-in product input voltage	200-1000Vdc/bit
	Burn-in product input current	100A/bit
	Burn-in Product Load Category	35kW/bit
	Burn-in product output voltage	Three-phase five-wire
	Burn-in product output current	80A/bit
	AC Connector Type	PA120 (L1/ L2/ L3/N/PE)
	DC Connector Type	MC4 photovoltaic connector (PV+/PV-/4 groups)
	Signal Connector Type	RJ45 (network port)
	Bit Status Indicator	No
	Input power	380kW
	Feedback power	315kW
	Constant temperature range	Room temperature+5°C-60°C
	Constant temperature accuracy	±5°C
	Number of temperature control points	5
	Open type	Sliding door/folding door/side door
