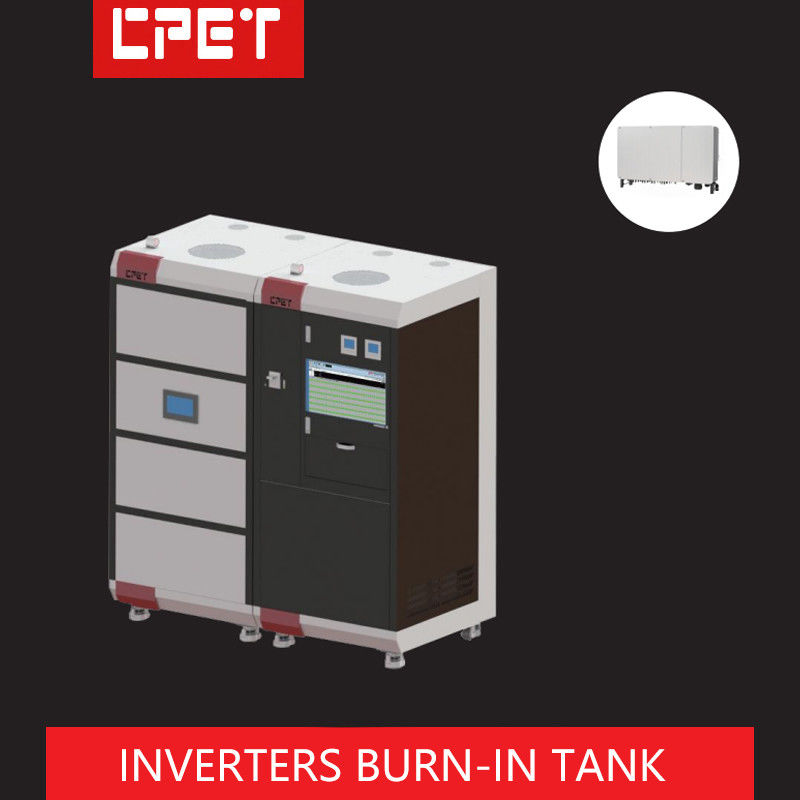

Large Scale String Photovoltaic Inverters Burn In Test Equipment Vehicle Inverter

Name: Large Scale String Photovoltaic Inverters Burn In Test Equipment Vehicle Inverter
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-NBQ831
Price: 9300 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-NBQ831

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 9300dollars/set

Packaging Details: Wooden case packing

Delivery Time: 40 work days

Payment Terms: L/C

Supply Ability: 25sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                photovoltaic inverters burn in test equipment, burn in test equipment vehicle inverter, photovoltaic inverters burn in equipment


Total Input Current:	200A*6	Total Input Power:	100kW*6
Warranty Period:	12 Months Free Warranty

Total Input Current:	200A*6
Total Input Power:	100kW*6
Warranty Period:	12 Months Free Warranty

Product Description

Large-Scale String Photovoltaic Inverters Burn-In Test Equipment Vehicle Inverter

Architecture diagram

Performance parameters

System	System structure	1 control cabinet + 6 power cabinets
	Overall size	58008602050mm
	Total floor area	5800*1800mm(Including operation area)
	Total input voltage	Three-phase five-wire system 220Vac (rated)
	Total input current	200A*6
	Total input power	100kW*6
	Application ambient temperature	0-40℃
	Application environment humidity	0-95%
	Fire protection requirements	Materials meet UL 94V0 rating
	Environmental requirements	Materials comply with Rohs, WEEE requirements
	Safety requirements	Comply with IEC62368 international standard design requirements
Burn-in cabinet	Units/Cabinet	4 bits/cabinet
	Burn-in product power	150kW/bit
	Burn-in product input voltage	50-1000Vdc/bit
	Burn-in product input current	500A/bit
	Burn-in Product Load Category	130kW/bit
	Burn-in product output voltage	220/380Vac/50Hz Three-phase five-wire
	Burn-in product output current	200A/bit
	AC Connector Type	PA350 (L1/ L2/ L3/N/PE)
	DC Connector Type	MC4 photovoltaic connector (PV+/PV-/8 groups)
	Signal Connector Type	RJ45 (network port)
	Bit Status Indicator	No
	Input power	600kW
	Feedback power	520kW
	Constant temperature range	Room temperature+5°C-60°C
	Volume size	8008002050mm
	Product area air duct direction	Forward wind, upward wind
	Cooling method	Air cooling
	Material	1.5mm cold rolled sheet
