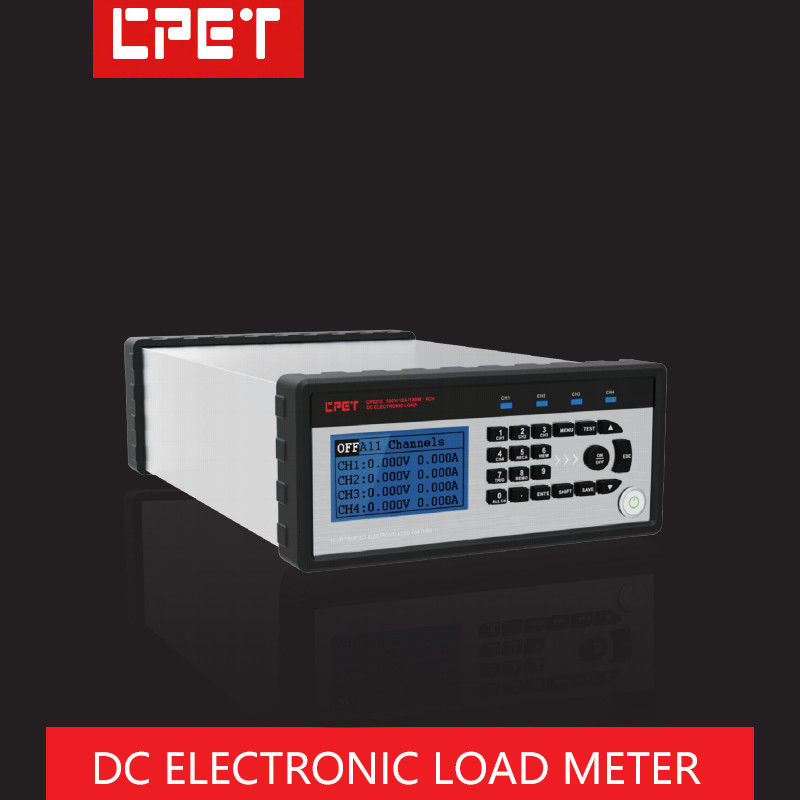

Power Adapter 4 Channels Programmable DC Electronic Load Testing Instrument

Name: Power Adapter 4 Channels Programmable DC Electronic Load Testing Instrument
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: 8212
Price: 320 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: 8212

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 320dollars/set

Packaging Details: Wooden case packing

Delivery Time: 5-8 work days

Payment Terms: D/A, T/T

Supply Ability: 1000sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                4 Channels Electronic Load Testing Instrument, Power Adapter Electronic Load Testing Instrument, Power Adapter Electronic Load Solutions


Warranty Period:	1 Year	Channel Number:	4CH
Total Maximum Input Power Of Whole Module:	400W

Warranty Period:	1 Year
Channel Number:	4CH
Total Maximum Input Power Of Whole Module:	400W

Product Description

Power Adapter 4 Channels Programmable DC Electronic Load Testing Instrument

Scope of application

Suitable for function tests of adapter and charger

Function tests of LED driver and LED TV power

Function tests of module power, industrial power and communicationpower

Function tests of AC/DC and DC/DC power converter

Discharging test of portable power

Outstanding functions

1. Be of CC (constant current), CV (constant voltage), CR (constant resistance), CP (constant power) and LED load mode

2. Support parallel connection of channels under any mode and meet large power supply test

3. Be of programmable test mode and support load characteristic test

4. Support PASS signal output and is convenient for test and extensive application

5. Judge status of tested product in accordance with conditions set by user

6. Save setting parameters, and is convenient for fast call during tests of multiple products

Performance parameters

Model		CP8212
Quantity of channel		4
Parallel connection of channels		Support parallel connection of channels under modes of CC/CV/CR/CP/LED
Maximum input power of each channel		100W
Total maximum input power of whole module		400W
Input current/channel		Measuring range of low current: 0.05-2.5 A	Measuring range of high current: 2.5-10 A
Minimum operating voltageInput current		1V@2.5A	5V@10A
Input voltage		Measuring range of low voltage: 1-50 V	Measuring range of high voltage: 50-450V
CC (Constant current) load mode	Measurin range	0.05A-2.5A	2.5A-10A
	Resolution	1mA	10mA
	Precision	± (1%+0.02%FS
