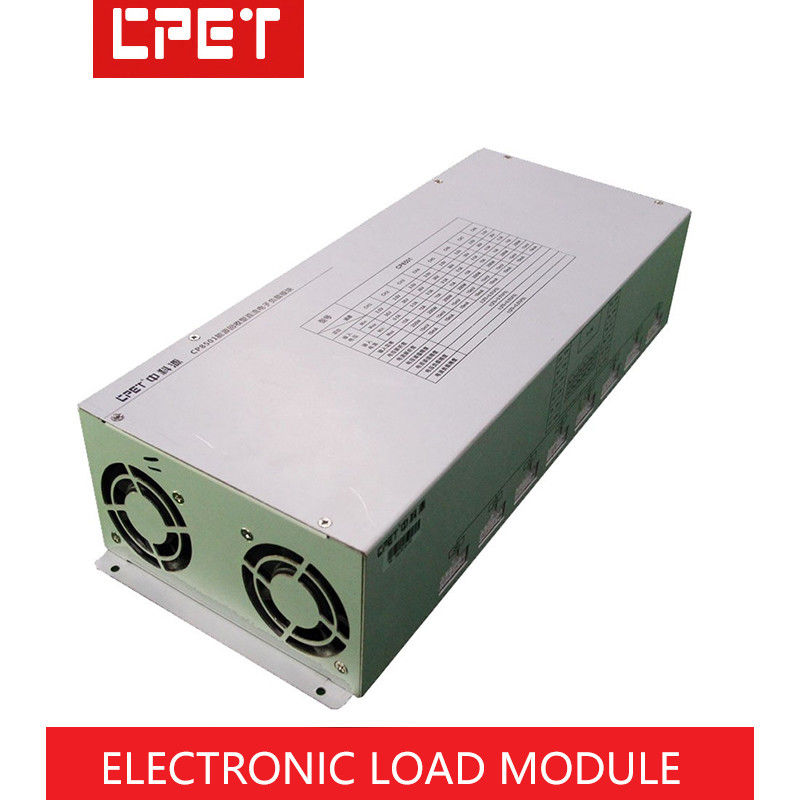

Programmable DC Energy Saving And Environmental Protection Electronic Load

Name: Programmable DC Energy Saving And Environmental Protection Electronic Load
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: 8509
Price: 800 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: 8509

Payment & Shipping Terms

Minimum Order Quantity: 5sets

Price: 800dollars/set

Packaging Details: Wooden case packing

Delivery Time: 10 work days

Payment Terms: D/A, T/T

Supply Ability: 500sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                8CH Electronic Load Solutions, 250W Electronic Load Solutions, Environmental Protection electronic test equipment


Channel Number:	8CH	Single Channel Power:	250W
Pull Mode:	CC/CV/CR/CP

Channel Number:	8CH
Single Channel Power:	250W
Pull Mode:	CC/CV/CR/CP

Product Description

Programmable DC Energy Saving And Environmental Protection Electronic Load

Scope of application

Apply to the burn-in testing of Adapter, Industrial power supply, Switching power supply,LED driver and other kind of power supply

Apply to aging vehicles ,burn-in cabinet,burn-in room,automatic burn-in testing system

Battery discharge burn-in testing

Outstanding functions

1. Channel take independent control

2. Efficiency is more than 85%

3. Support Von setting

4. CC/CV/CR/CP load mode

5. Output take EMC progress

6. Harmonic correction of power harmonic

7. Support parallel connection of channel under CC load mode

8. RS485 Communication Structure is industrial grade

Performance parameters

Model	CP8508	CP8509	CP8512	CP8513
Input voltage range	3~60Vdc	10~100Vdc	3~60Vdc	3~60Vdc
Input current range	0.5~20Adc	0.5~10Adc	0.5~40Adc	0.5~60Adc
Channel number	8CH	8CH	4CH	6CH
Single channel power	250W	250W	550W	1100W
Pull mode	CC/CV/CR/CP	CC/CV/CR/CP	CC,CV,LED,CR,CP	CC,CV,LED,CR,CP
Votage comtrol precision	±2%+0.5%FS	±1%+0.2%FS	±2%+0.5%FS	±2%+0.5%FS
Voltage accuoacy	±1%+0.5%FS	±1%+0.2%FS	±1%+0.5%FS	±1%+0.5%FS
Current control accuracy	±2%+0.5%FS	±1%+0.2%FS	±5%+0.5%FS	±3%+0.5%FS
urrent readback accuracy	±1%+0.5%FS	±1%+0.2%FS	±1%+0.5%FS	±1%+0.5%FS
Output voltage/ current	72V/28A	120V/17A	56V/57A	RS-485
Communication mode	RS-485	RS-485	RS-485	RS-485
Paired inverter	CP5309	CP5310	CP5309	CP5309
