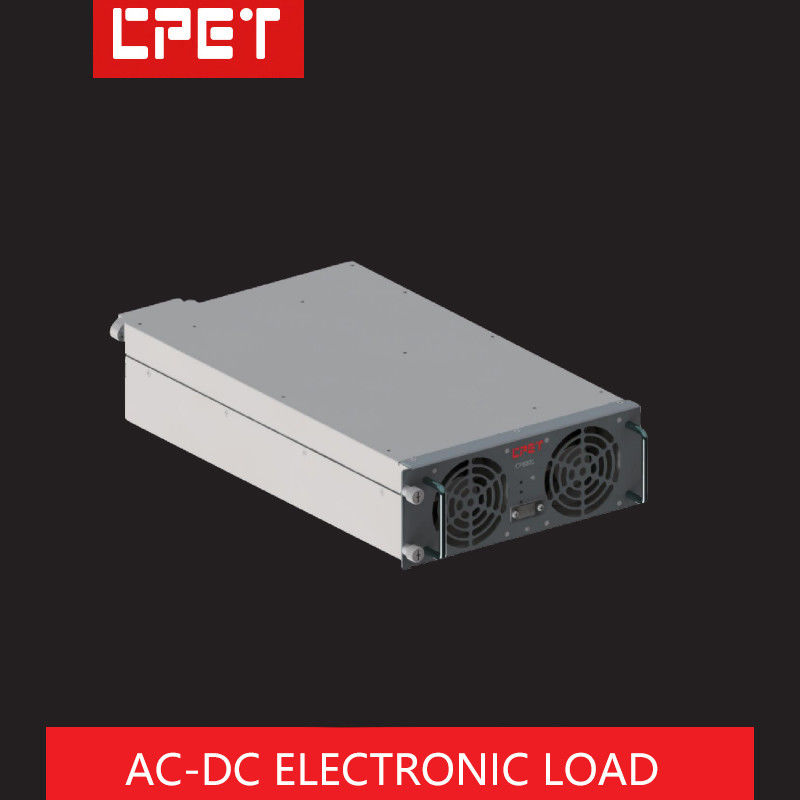

High Power Programmable Energy Saving AC-DC Two Way Source Electronic Load

Name: High Power Programmable Energy Saving AC-DC Two Way Source Electronic Load
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-8801
Price: 950 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Certification: CE,ROHS

Model Number: CP-8801

Payment & Shipping Terms

Minimum Order Quantity: 5sets

Price: 950dollars/set

Packaging Details: Wooden case packing

Delivery Time: 10 work days

Payment Terms: D/A,T/T

Supply Ability: 400sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                Energy Saving Electronic Load Solutions, Two Way Electronic Load Solutions, High Power Electronic Load Solutions


Channel Number:	1CH	Single Channel Power:	15KW
Input Voltage Range:	85~260Vac	Ac Grid-connected Current:	23A Max.

Channel Number:	1CH
Single Channel Power:	15KW
Input Voltage Range:	85~260Vac
Ac Grid-connected Current:	23A Max.

Product Description

High Power Programmable Energy Saving AC-DC Two-Way Source Electronic Load Factory

Scope of application

Independent Burn-in trolley, Burn-in rack, Burn-in room

Battery charge and discharge test

Outstanding functions

1. AC-DC two-way conversion, it can be used as a power supply or as a feedback load, one machine for multiple purposes

2. Soft switching technology, high conversion efficiency, the highest efficiency reaches 95%

3. Integrated PFC function, high power factor, low THD, grid-friendly equipment

4. Plug-in frame structure, easy to install and maintain

5. Support source CC, CV mode, load CC, CV, CP, CR mode

6. In CV mode, support automatic switching between source and load

7. Complete protection functions, such as over current, over voltage, overload, over temperature, under voltage, short circuit, fan failure, etc.

8. Fully isolated RS485 communication, CAN communication

9. Fully digital control, digital monitoring electronic load

10. Robust shell structure and excellent heat dissipation system

11. High quality and cost-effective

Performance parameters

Model	CP8801	CP8802	CP8803	CP8804
Dc side voltage range	50~800Vdc	50~1000V	100~750V	60~80V
Dc current range	0~50A	0~30A	0~25A	0~30A
Channel number	1CH	1CH	1CH	2CH
Single channel power	15KW	15KW	7KW	2KW
Pull mode	CC,CV	CC,CV,LED,CR,CP	CC,CV	CV
Votage comtrol precision	±2%+0.5%FS	±1%+0.2%FS	±2%+0.5%FS	±2%+0.5%FS
Voltage accuoacy	±1%+0.5%FS	±1%+0.2%FS	±1%+0.5%FS	±1%+0.5%FS
Current control accuracy	±2%+0.5%FS	±1%+0.5%FS	±5%+0.5%FS	±3%+0.5%FS
Current readback accuracy	±1%+0.5%FS	±1%+0.2%FS	±1%+0.5%FS	±1%+0.5%FS
Type of load	Three-phase AC grid connection	Single phase AC grid connection	Single phase AC grid connection	Single phase AC grid connection
Ac side voltage range	260~485VAC	180~240VAC	180~240VAC	180~240VAC
Rated AC side voltage	380VAC 50Hz	220VAC 50Hz	220VAC 50Hz	220VAC 50Hz
Ac grid-connected current	23A Max.	30A Max.	32A Max.	12A Max.
Tracking frequency range	47~63Hz	47~63Hz	47~63Hz	47~63Hz
