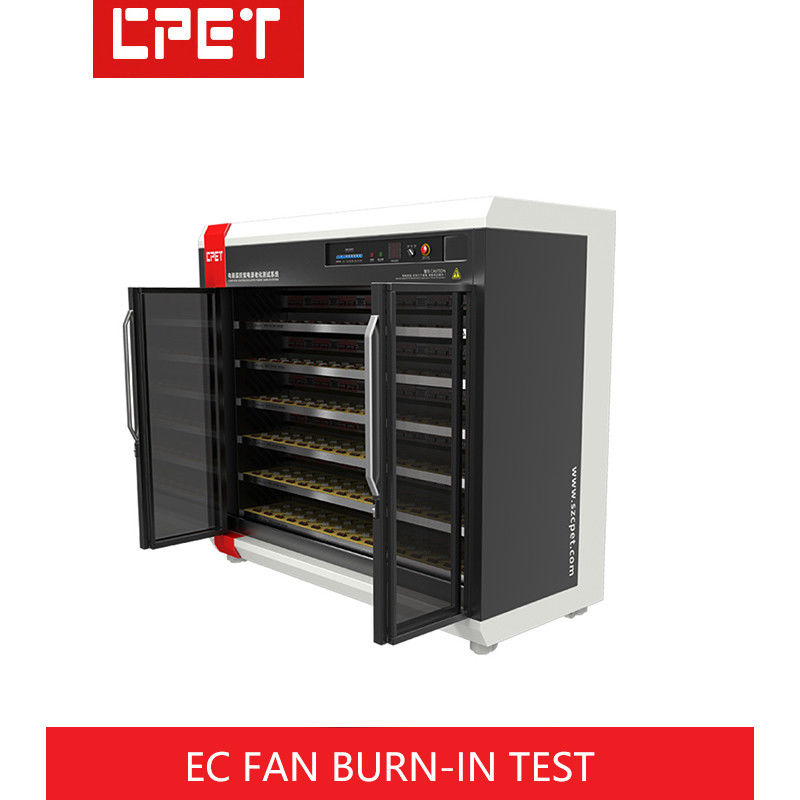

Burn In Test Of Temperature Controlled EC Fan Drive Module Support Customization

Name: Burn In Test Of Temperature Controlled EC Fan Drive Module Support Customization
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-CEF03
Price: 8600 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-CEF03

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8600dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                customization burn in test, customization burn in equipment, temperature controlled burn in test


Burn-in Cabinet Size(mm):	240012001600 Mm	Warranty Period:	12 Months
Rated Working Current:	8.3A

Burn-in Cabinet Size(mm):	240012001600 Mm
Warranty Period:	12 Months
Rated Working Current:	8.3A

Product Description

Burn-In Test Of Temperature-Controlled EC Fan Drive Module Support Customization

Scope of application

Mainly used in burn-in test of temperature-controlled EC fan drive module

Performance parameters

Skills requirement	Burn-in cabinet size(mm)	L2400W1200H1600
	Rated working voltage	460Vac
	Rated insulation voltage	690Vac
	Rated frequency	50Hz
	Rated working current	8.3A
	Power frequency withstand voltage for 1 minute	2500Vac
	AC input specifications	460Vac/8.3A
	AC output specifications	364Vac/8.35Amax
	Master switch	4way 100A
	Input switch	24way 16A
	Output switch	24way 16A
	IP rating	IP20
	Noise	<70dB (measured at a distance of 1m from the device)
Structural requirements	Dimension(mm)	2400(W)1200(D)1600(H)
	Burn-in slot layout requirements	The bottom of the cabinet with 3 layers and 8 Burn-in slots on each floor needs to be reserved for 40CM installation inductance
	Burn-in slot layout requirements
	Docking method	Connector supports 600VAC, 16A hard connection
	Cabinet door	Double door
	Maintenance method	Before and after maintenance
Monitor and indicate	Monitoring requirements	1.Electrical interface: RS485 communication, a total of 24 channels, each interface is isolated from each other 2.Communication distance: 6m 3.Working mode: asynchronous half-duplex 4.Photoelectric isolation: isolation voltage 2.5KVrms 5.Parameter setting: RS485 baud rate: 9.6-115.2Kbps 6.Monitoring parameters: power on / off control of each slot, voltage and current settings and readback, temperature and alarm information read
	Safety requirements	1.Energy analysis of key components in short-circuit and over-current scenar ios 2.With energy analysis in over-temperature and smoking scenes 3.The control circuit has a leakage protection function
	Panel instructionsv	Each slot indicator
