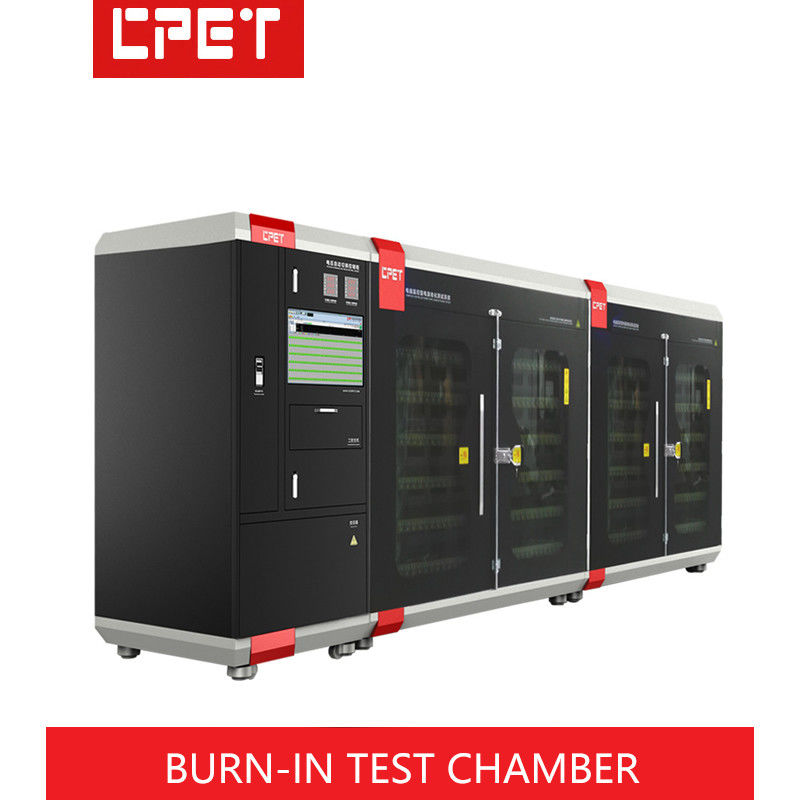

High Temperature Burn In Test Chamber Power Circuit Board Support Customization

Name: High Temperature Burn In Test Chamber Power Circuit Board Support Customization
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-G04
Price: 8200 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Certification: CE,ROHS

Model Number: CP-G04

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8200dollars/set

Packaging Details: Wooden case packing

Delivery Time: 30 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                High Temperature Burn In Test Chamber, Custom Burn In Test Chamber, Cold rolled sheet burn in chambers


Reference Size (DWH):	L2050W880H1900mm	Truck Structure Material::	Cold-rolled Sheet
Guarantee Period:	1year

Reference Size (DWH):	L2050W880H1900mm
Truck Structure Material::	Cold-rolled Sheet
Guarantee Period:	1year

Product Description

High Temperature Burn-In Test Chamber Power Circuit Board Support Customization

Performance parameters

1	Introduction to the appearance structure of the aging trolley:
A	Car size (mm) :	L2050W880H1900(Height excluding top high temperature fan)
B	Number of car layers:	Product area 6 layers, the whole cabinet can place 192 products
C	Height of truck:	Aging cabinet product area length: 1670mm, clearance height: 160mm, depth: 280mm
D	Truck structure material:	1.2mm thick cold-rolled sheet, the main structure of rock wool thermal insulation double sheet metal, with thermal insulation effect
E	Load area heat dissipation mode:	Top turbine exhaust fan up-row (easy ring temperature control)
F	Interlayer insulation and anti-static mode:	Epoxy insulating board with heat dissipation holes on the surface
G	Truck structure form:	The test area is isolated from the place where the power supply is placed
H	Aluminum alloy visual sliding door structure:	The product is enclosed and can be seen as a double-layer thermal insulation glass door
2	Introduction of electric control and temperature control device for aging truck:
A	Connection mode:	The AC input end is: speaker clamp, and the DC adapter board is: two speaker clamp + parallel switch
B	Panel function keys:	Input AC voltage display, start switch, emergency stop switch
C	Product area temperature control accuracy:	Product area temperature control, temperature control range: normal temperature to 80℃±5℃; The internal materials are made of high temperature resistant materials
D	Product area temperature control principle:	Low temperature heating, over temperature exhaust, cold and hot air duct isolation
E	Trolley power distribution and control mode:	380V three-phase five-wire distribution; Computer monitoring and manual electric control; The power supply of the device is independent from the power supply under test
F	Control mode:	Electric control includes manual/automatic
G	Safety protection:	Equipment grounding protection, leakage switch protection, smoke alarm automatic power off protection, etc
