Home > products > Electronic Load Solutions > Channels Isolate Electronic Loads 125W 4CH Programmable Electronic DC Module

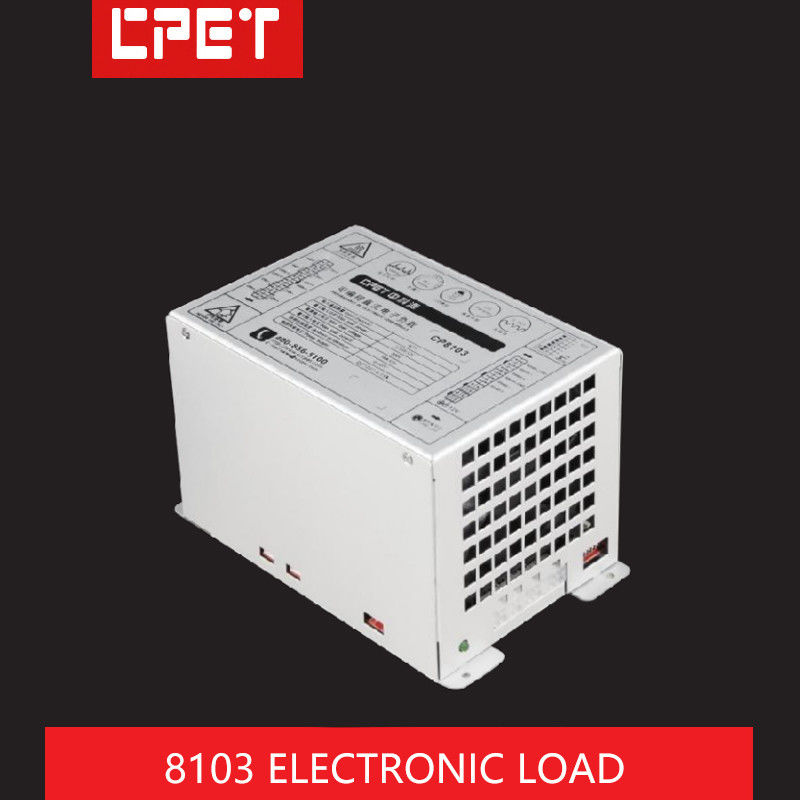

Channels Isolate Electronic Loads 125W 4CH Programmable Electronic DC Module

Name: Channels Isolate Electronic Loads 125W 4CH Programmable Electronic DC Module
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: 8103
Price: 150 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: 8103

Payment & Shipping Terms

Minimum Order Quantity: 10sets

Price: 150dollars/set

Packaging Details: Wooden case packing

Delivery Time: 5-8 work days

Payment Terms: D/A, T/T

Supply Ability: 1000sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Channels Isolate Electronic DC Module, 125W Electronic DC Module, 4CH Electronic Load Solutions


Input Voltage Range:	1~500V	Input Current Range:	0.05~10A
Single Channel Power:	100W

Input Voltage Range:	1~500V
Input Current Range:	0.05~10A
Single Channel Power:	100W

Product Description

Channels Isolate Electronic Loads 125W4CH Programmable Electronic DC Module

Scope of application

Isolated & non-isolated LED driver TV power, LED backlight driver

Power charger, adapter DC-DC converter

Power with multiple voltage output and positive & negative voltage output

Outstanding functions

1. Be of five kinds of load modes, such as CC, CV, CR, CP and LED.

2. Support parallel connection of channels under any load modes and meet the requirements for product power extension.

3. Support the maximum dynamic load of 5K and programmable rising and falling slope of current.

Performance parameters

Model	CP-8103
Input voltage range	1-500V
Input current range	0.05-10A
Single channel power	125W
Pull mode	CC/CV/LED/CR/CP
Votage comtrol precision	±1%+0.5%FS
Voltage accuoacy	±1%+0.5%FS
Current readback accuracy	±1%+0.5%FS
Communication mode	RS-485
Channel isolation	Y
