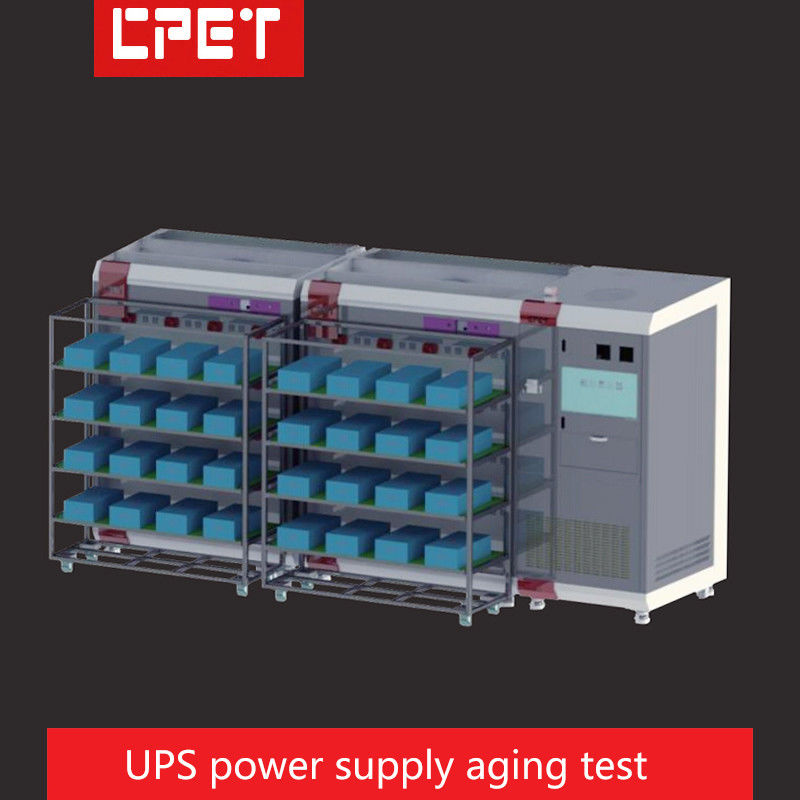

UPS Uninterruptible Power Supply Aging Test Cabinet Manufacturer

Name: UPS Uninterruptible Power Supply Aging Test Cabinet Manufacturer
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-UPS4001
Price: 7200 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Certification: CE,ROHS

Model Number: CP-UPS4001

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 7200 dollar/set

Packaging Details: Packed in wooden cases

Delivery Time: 30-45 days

Payment Terms: T/T

Supply Ability: 30 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Guarantee Period:

1 Year

Total Input Current:

130A*2

Guarantee Period:	1 Year
Total Input Current:	130A*2

Product Description

UPS Uninterruptible Power Supply Aging Test Cabinet Manufacturer

Performance parameters

UPS Uninterruptible Power Supply Aging Test Cabinet Manufacturer 0

Category	Project	Content
System	System architecture	One control cabinet + two load cabinets
	Total volume dimension	49808802050mm
	Total land area	4980*1800mm(Including the operation area)
	Total input voltage	Three-phase five-wire 380Vac (rated)
	Total input current	130A*2
	Total input power	66kW*2
	Application ambient temperature	0-40℃
	Application environment humidity	0-95%
	Fire protection requirements	The material complies with UL 94V0 grade
	Environmental protection requirements	The materials comply with Rohs and WEEE requirements
	Safety requirements	It complies with the design requirements of the IEC62368international standard
Power cabinet	Number of units/cabinets	8 bits per cabinet
	Input power of aged products	6.6kW/bit
	Input voltage of aged products	220Vac/single phase
	Input current of aged products	32A/bit
	Output power of aged products	6kW/bit
	Output voltage of aged products	220Vac
	Output current of aged products	30A/bit
	Type of AC connector	Anderson 50A
	Signal connector type	RJ45(net opening)
	Input power	53kW
	Feedback power	42kW
	Volume dimension	20508002050mm
	Air duct direction in the product area	Forward wind, upward wind
	Heat dissipation method	Air-cooled
	Material	Cold-rolled sheet
Monitoring software	Display operation information	Input voltage, current, power, output voltage (load module communication or product communication)
	Display status information	Notconnected/Emptyposition/Qualified/Undervoltage/ undercurrent/Overvoltage/Overcurrent/No output/protection
	Display accuracy	±(1%+0.2%FS)
	Control accuracy	±(1%+0.2%FS)
	Poor alarm mode	Sound and light alarm
	Report format	CSV format
	Statistical information	Yield rate /CPK/ time distribution
	MES connection	Support
	Scanning speed	5S
Control cabinet	Output power of aged products	5kW
	Control system	Window 10
	Display medium	Computers and monitors
	Control medium	Mouse, keyboard
	Communication method	Network cable
	Protection type	Overcurrent, leakage, over-temperature, smoke detection, emergency stop
	Alarm mode	Sound and light alarm, remote network
	Heat dissipation type	Air-cooled
	Maintenance mode	Post-maintenance
	Volume dimension	8808602050mm
